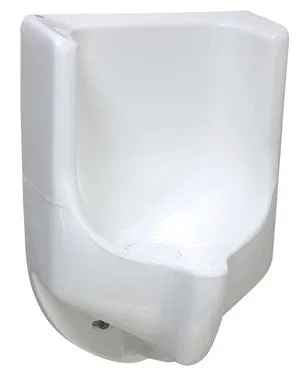

High-Performance Composite Material
18"W x 28"H x 14"D
ADA Compliant

Description

• Installs like a flushed urinal to the 2" drain line via a gasket and flange.  No adapters needed.
• A full 2" interior drain line allows for easy line cleaning if needed.  Urinal does not need to be removed from the wall for snaking.  Saves time!
• All wall drain units have a closed urinal bottom to avoid vandalism.

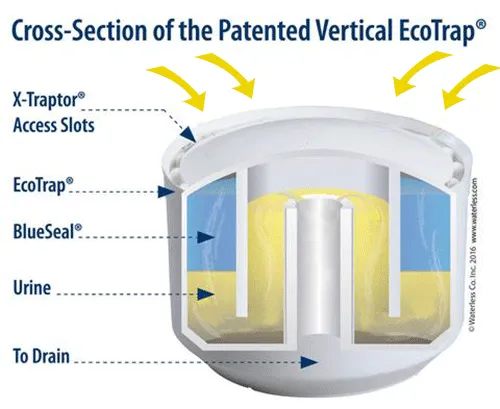

• No gaskets or O-rings needed on EcoTrap® inserts. Simple pressfit!
• Includes (2) EcoTrap® inserts and mounting hardware (New installations require a brass flange and gasket set #5001)
• LEED® Applicable

Specification

Warranty: 3 Year Limited Warranty

Approx. Weight: 22 lbs (20.5 kg)

Complies with: A117, ASME A112.19.19, others.

For Standard Installation:
Mount at 24" above the finished floor to the lip of urinal or as required by the architect. Center drain line to be at 15" off the finished floor.

For ADA Requirements:
Mount at 17" above the finished floor to the lip of urinal. ADA center drain line to be at 8" off the finished floor.

All New Installations:
2" Brass Flange is required (not included)


Support PDF

Required Maintenance Supplies (Not Included)

Recommended for First Start-Up

 (includes qt.Blue Seal, Portion-Aid & X-traptor tool)
